SEE-THROUGH OIL FILTER. SCREW-ON 4in (115 MICRON) UP TO 70wt OIL AN12. ACCEPTS GM THREAD SPIN-ON FILTER
List Price:
$632.75
You Save: 11%
Your Cost: $563.99
Weight: 3.8 lbs
In Stock
-Machined out of 6061-T6 billet aluminum.
-Clear Anodized for protection and durability.
-Sight windows are 1/2in thick high-grade poly carbonate that is chemical, heat, and scratch resistant.
-Elements are stainless steel mesh that can easily be cleaned and reused.
Note: Assemblies are equipped with a pressure relief valve and are designed for engines with a max pressure of 350 psi and a max working temp of 400 degrees Fahrenheit.

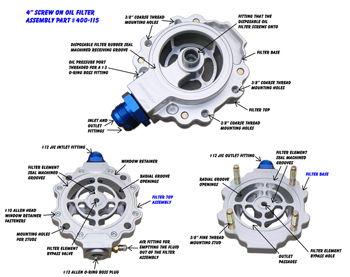

The 4in filter assemblies are smaller and lighter than the 6in filters. Which makes it easier to mount in tight engine compartments and dragsters. This is also the best choice for dirt track racing, street, marine, and applications where the user wants to filter microscopic and dust particles out of the system. Filter has two Inlets and one Outlet opening that are threaded for #12 o-ring boss fittings. This filter assembly is designed to be used with disposable filters (listed below) with GM threads. The fluid first flows through the See Through Filter assembly with a Hi-Flow screen which catches the visible particles which can be viewed and inspected. The oil then flows through the disposable filter using a finer mesh screen to catch the microscopic particles.
This See Through Filter assembly can also be used with early Chevy disposable oil filters (which are not included):
-Fram PH30 or PH13
-K&N HP-2002 or HP-3002
-Wix #51069 or #51060
Mounting Bracket: Flat Surface Mounting Bracket p/n O-3020 (Included)
Dimensions: 5 x 6in. 3in tall.
Weighs 3.2lbs.
