C-B3370 - IN-LINE F/C MASTER CYLINDER & RESERVOIR 1.123 PRIMARY .875in SECONDARY

Name: C-B3370 IN-LINE F/C MASTER CYLINDER & RESERVOIR 1.123 PRIMARY .875in SECONDARY
Brand: Strange Eng.
SKU: C-B3370
Price: 627.99 USD
Availability: InStock

IN-LINE F/C MASTER CYLINDER & RESERVOIR 1.123 PRIMARY .875in SECONDARY

List Price: ~~$717.50~~

You Save: 12%

Your Cost: $627.99

Weight: 1.1 lbs

In Stock

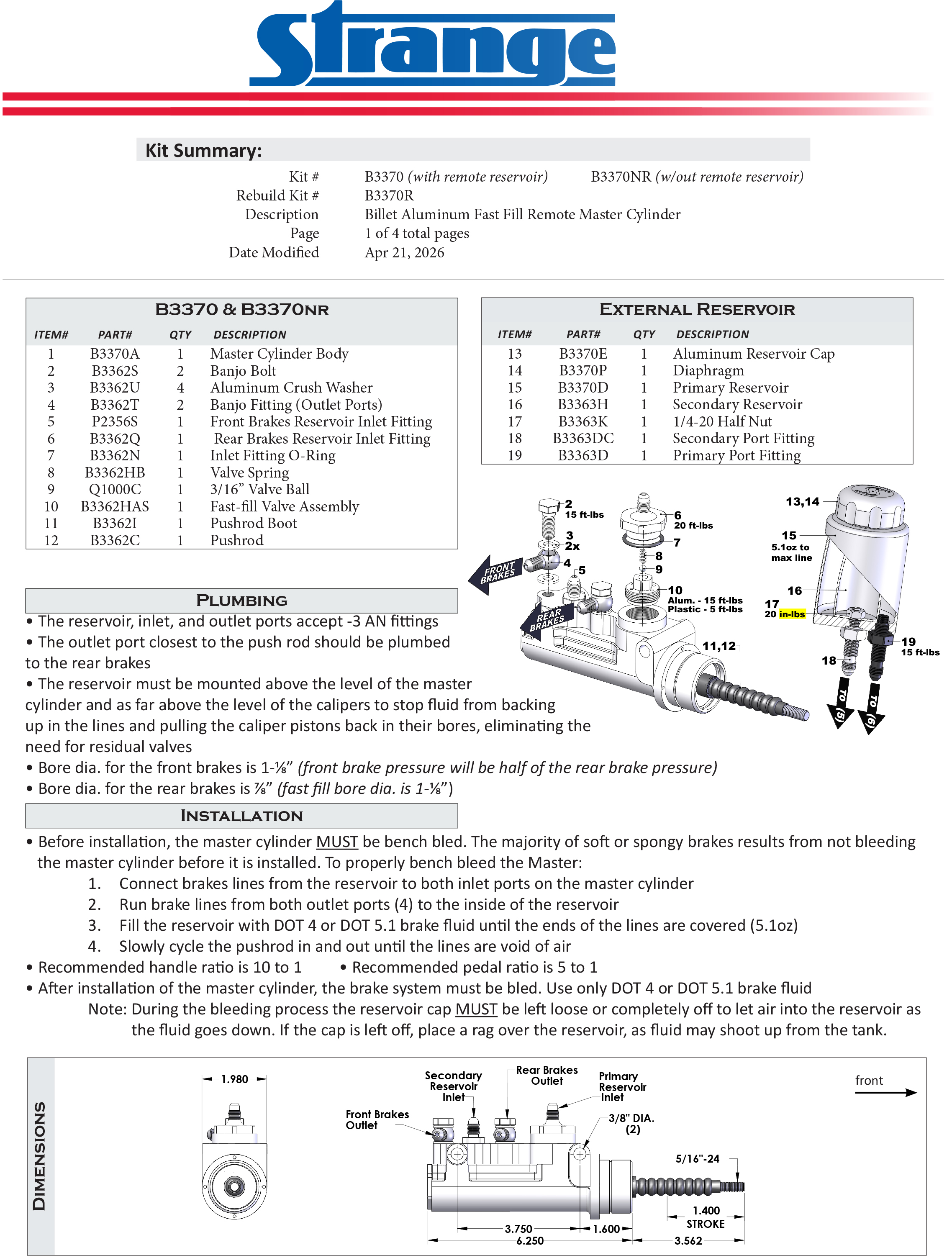

Technical Schematic

View the technical drawing and installation information for C-B3370.

Dual Master Cylinder Strange Fast Fill Design Includes Remote Reservoir

Features:

Designed Specifically For Drag Racing

3AN brake lines and fittings are not DOT approved

Application

Drag Race Vehicles with Front and Rear Brakes

Commonly used in Funny Car & Pro Mod

Overview

Stepped bore design provides short travel with less effort

Reservoir can be mounted in a convenient location for fluid maintenance

Mounted above the calipers eliminates any residual pressure valves

Reservoir is more resistant to heat damage than plastic reservoirs

Requires less brake handle / pedal ratio

Dual In-line Fast Fill Master Cylinder

6061-T6511 billet aluminum body

Hard anodized with PTFE coating

1.123 primary bore first moves a large volume of fluid to the rear brakes

0.875 secondary bore then applies high pressure to the rear brakes

Internal pop-off valve regulates this transition

1.123″ third bore supplies fluid only to the front brakes

Design eliminates the need for a proportioning valve

Brake line banjo fittings with male 3 AN ends

3 AN brake fluid inlet fittings

Side mount .375 holes on 3.750 centers

Remote Reservoir � C-B3370RK

6061-T6511 billet aluminum reservoir

Clear anodized for corrosion resistance

Separate internal chambers for front & rear systems

External markings for Max / Min fluid levels

Threaded cap insures a tight seal to prevents leaks

Internal diaphragm allows for fluid displacement

Provided with two male 3 AN outlet fittings

Note Silicone Brake Fluid Is Not Recommended
Master cylinder rebuilding kit C-B3370R
