CAM DEGREE INSTALLATION FIXTURE w/ Digital INDICATOR - BBC
List Price:
$281.25
You Save: 22%
Your Cost: $218.99
Weight: 2 lbs
In Stock

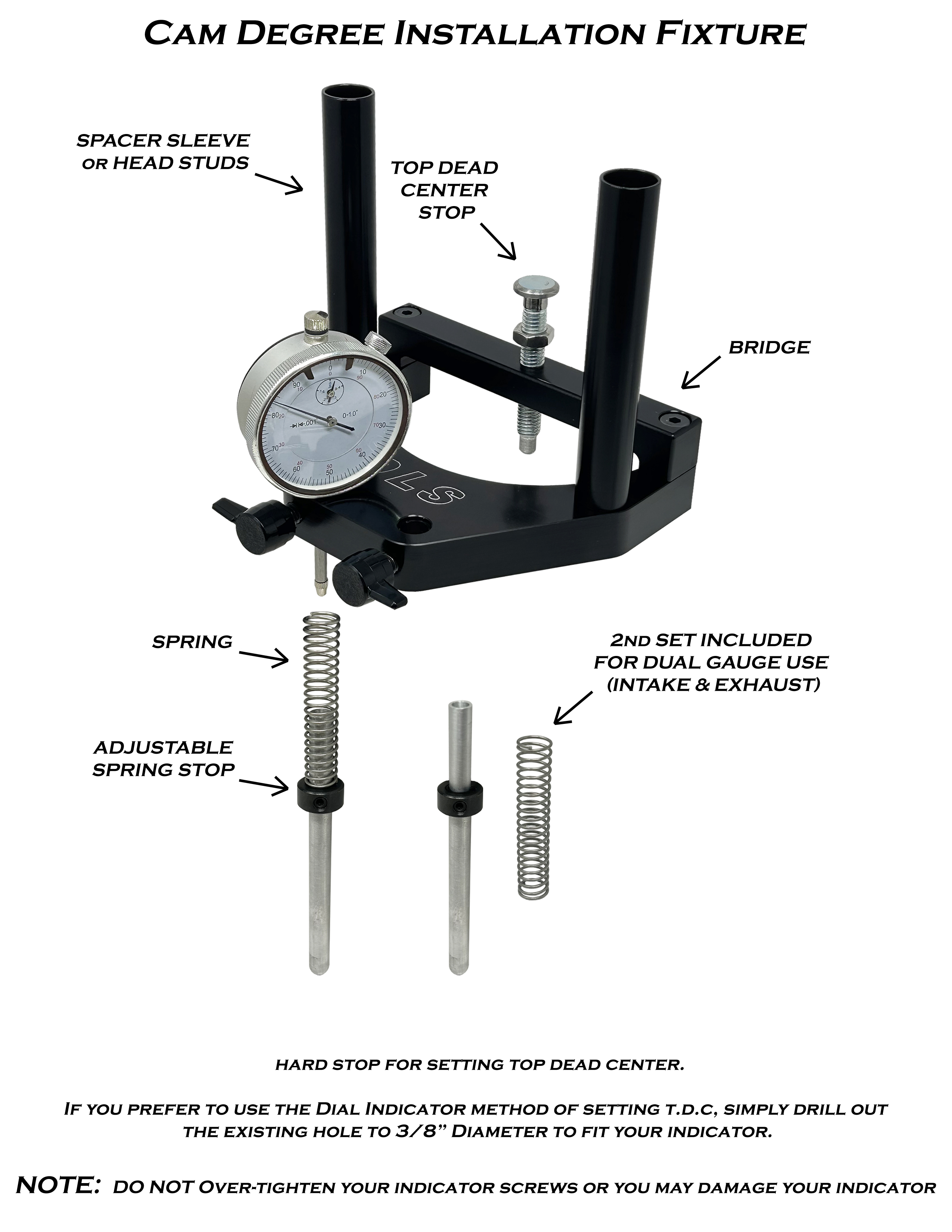

View the technical drawing and installation information for T-1116.D.
One of the most challenging tasks in building a performance engine is probably dialing in the camshaft. Here is a tool that makes the job a lot quicker and easier.
This fixture attaches to the block over cylinder #1 using two of the block studs (or bolts).
An adjustable stop is included for helping determine the top-dead center.
There are 2 spring-loaded rods for each lifter.
Install the Included Digital indicator into either the intake or exhaust hole of the fixture.
It's a must-have for the serious engine builder.
